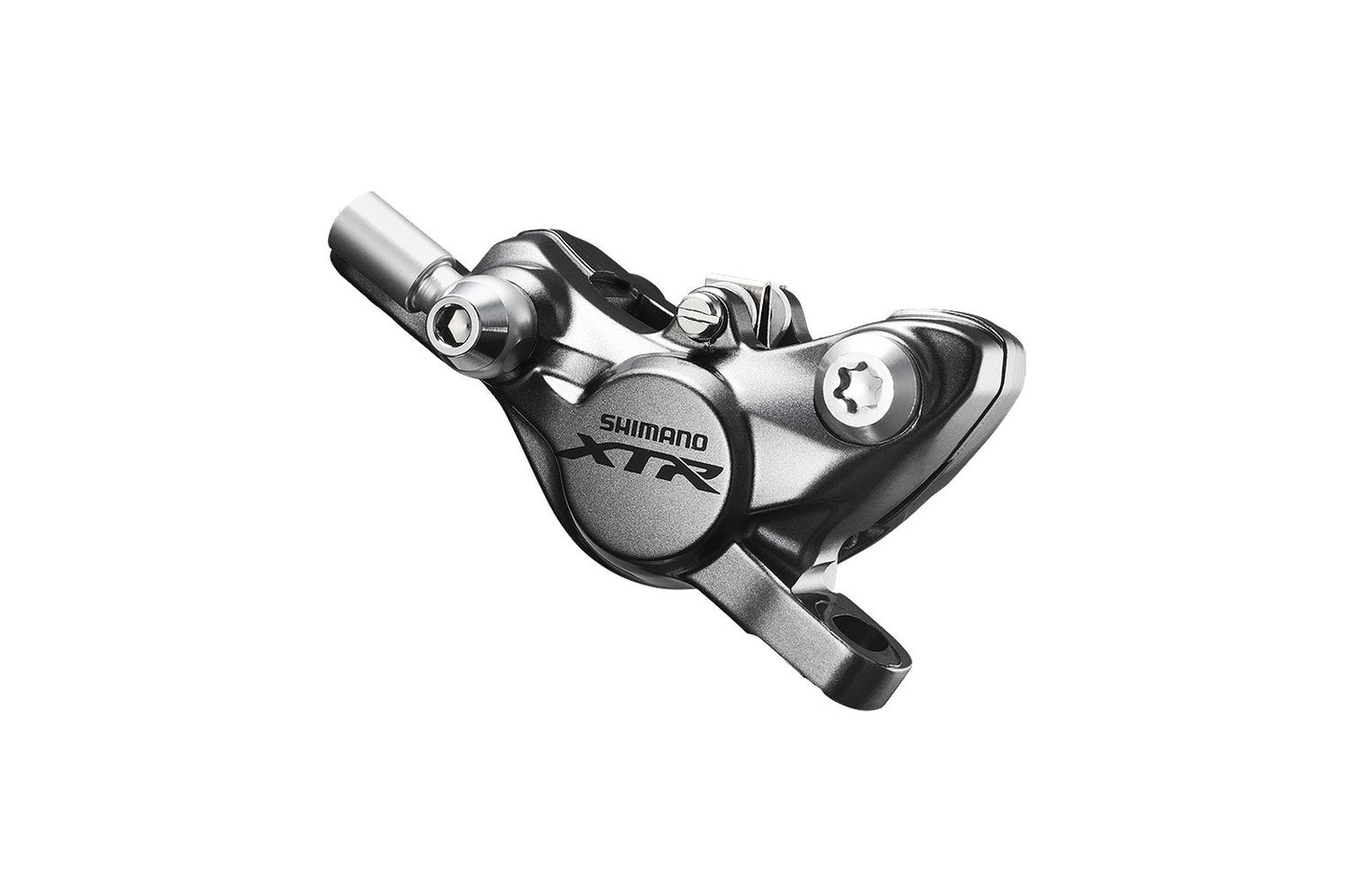

Shimano XTR M9000 Race Disc Brake Caliper

The XTR M9000 hydraulic disc brake systems are also Rider Tuned in Race and Trail versions, as not all riders come down the same mountain at the same speed. Shimano’s legacy of leading brake design stems from its dedicated study of the components of control: heat, power and stiffness.

New XTR M9000 brakes offer varying levels of heat control from an insulated piston (glass fiber phenolic) and insulated pad coating that created 10 percent more heat resistance. XTR M9000 brake levers also feature new handlebar-clearing I-spec II mounting.

Thanks to improved control, heat reduction and ergonomics, you’ll seamlessly react to terrain changes with the highest level of braking confidence. The M9000 Race brake has race-tuned power and overall lighter weight thanks to a magnesium caliper and titanium mounting bolts, aluminIum backed pad and superior heat management thanks to an insulated piston and insulated pad coating.

keyboard_arrow_right Features

  • Shimano XTR cutting edge braking technology, lightweight and powerful easily adaptable post-style hydraulic disc brake caliper
  • Oversized 22mm glass fibre phenolic pistons optimized for heat insulation, lightweight and stiffness
  • Opposed 2-piston design reduces leading effect and optimal pad wear increases braking control
  • Super lightweight magnesium caliper design with Titanium hardware
  • Can be used with a choice of adapters and rotors giving you the freedom to customise and suit your bike
  • Recommended for use with Ice Tech Centre-Lock rotors for optimum braking performance in a choice of 160mm, 180mm and 203mm
  • Can be used with Ice Tech pads available in resin or sintered compound, the optional aluminium radiation fin pad further improves heat dissipation reducing brake surface temperature by 50 deg
  • Easy to use one way oil bleeding for improved oil routing
  • Mineral oil brake fluid
  • Shim-less mounting system
  • Banjo style attachment for neat hose alignment
  • Contains G02A resin pads, plus optional bleed nipple blanking grub screw to save a further 3 grams
  • Piston Material: High Insulation Resin
  • Weight: 182g (pair)
