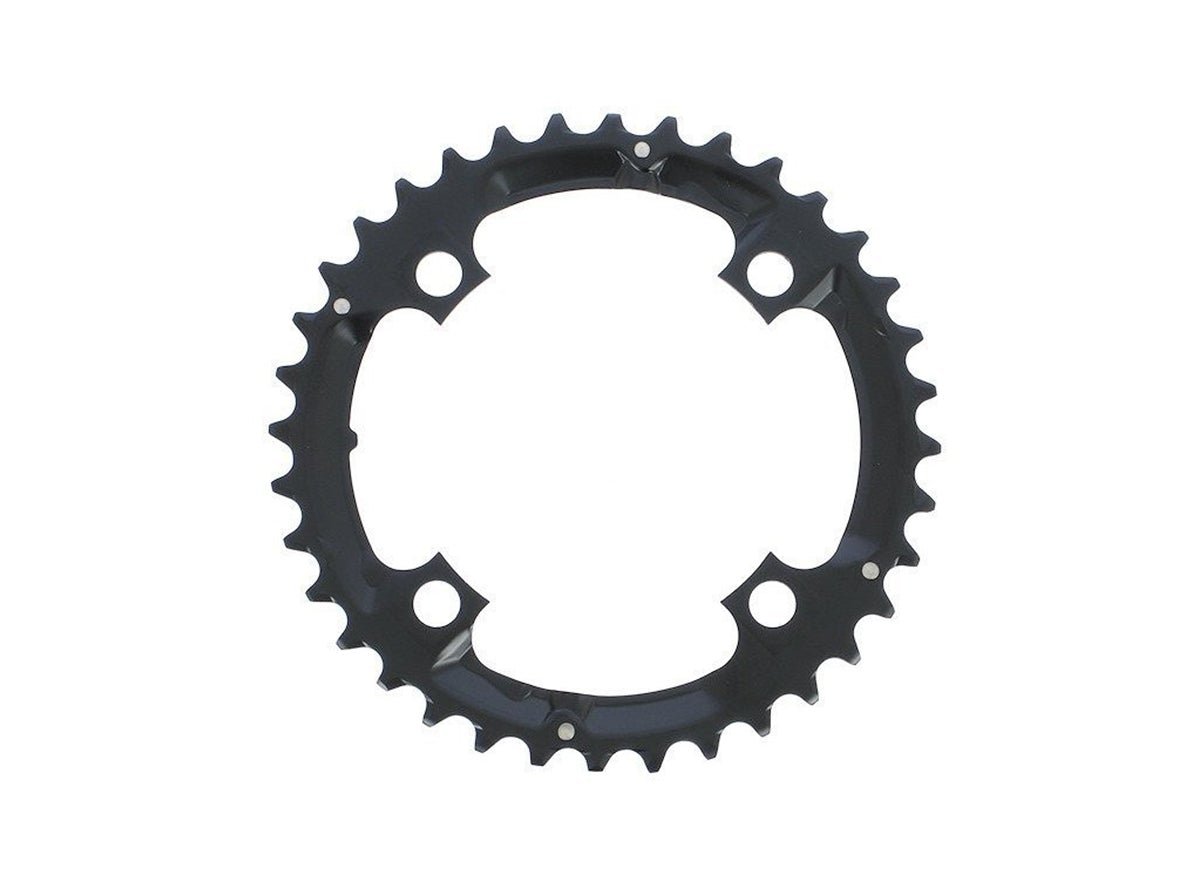

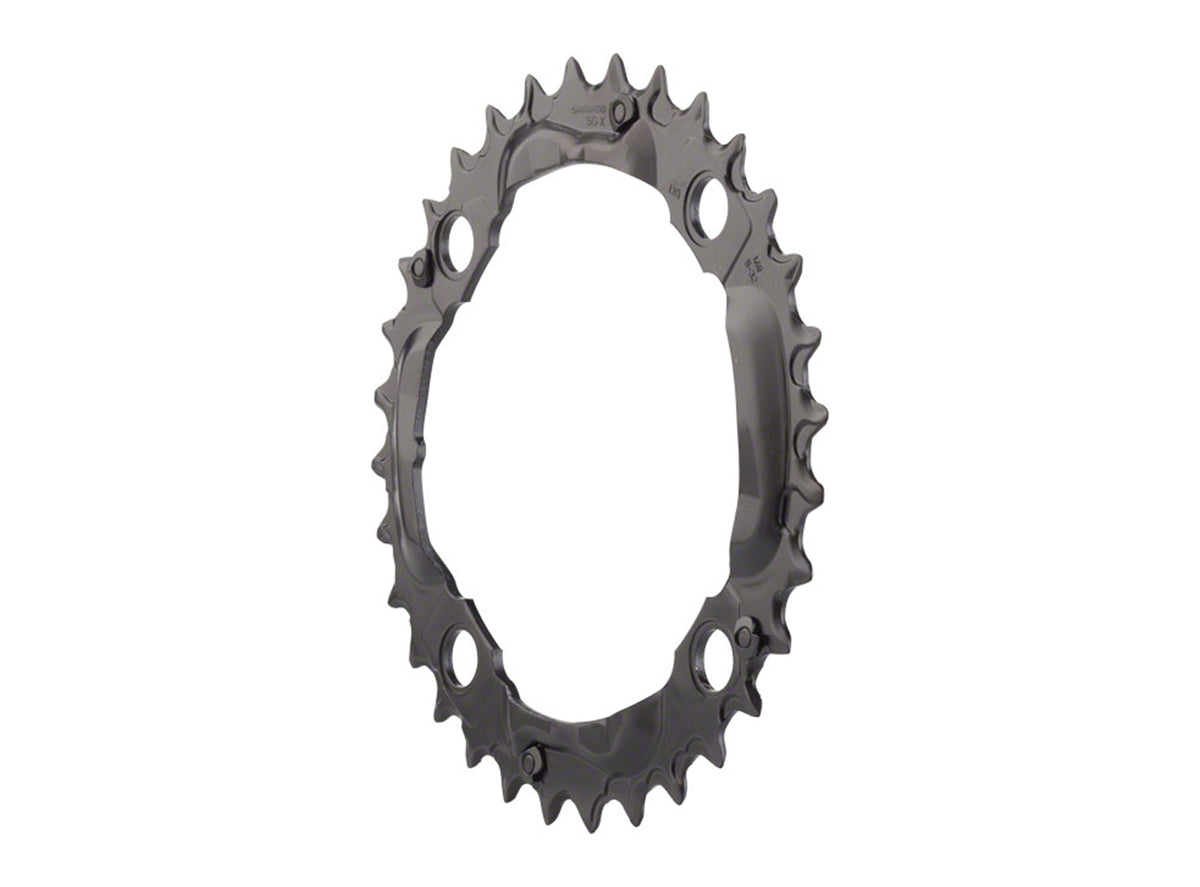

Shimano M590 Chainring

This Shimano Deore 9-speed chainring fits perfectly to the FC-M590 cranks, in some versions also to FC-M591 and other cranks. The 26 t version is even compatible with 3x10-speed drivetrains. The smaller chainrings (up to 36 teeth) are made of steel, the larger ones of aluminium.

• Application: Trail, All Mountain, Cross Country, City & Touring
• Mount: 104/64 mm bolt circle diameter, 4-arm
• Teeth: 22 t, 26 t, 32 t, 36 t, 44 t, 48 t
• Gearing: 3x9-speed, 3x10-speed (only 26 t with FC-M610, FC-T611, FC-T6010)

Models:

22 tooth:
- Compatibility: Deore FC-M590-L, FC-M591-L / Alivio FC-T4060 / FC-MT300, can also be used with FC-M533-K
- Bolt Circle Diameter: 64 mm
- Factory Number: Y-1LD22000

26 tooth:
- Compatibility: Deore FC-M590-L, FC-M591-L, FC-M610, FC-T611, FC-T6010 / Alivio FC-T4060, can also be used with FC-M533-K, FC-T551
- Bolt Circle Diameter: 64 mm
- Factory Number: Y-1LD26000

32 tooth:
- Compatibility: Deore FC-M590-L, FC-M591-L / Alivio FC-T4060 / FC-T4010, FC-T3010 / FC-MT300, can also be used with FC-M533-K
- Bolt Circle Diameter: 104 mm
- Factory Number: Y-1LD98080

36 tooth:
- Compatibility: Deore FC-M590-L, FC-M591-L / Alivio FC-T4060 / FC-T4010, FC-T3010, can also be used with FC-M533-K
- Bolt Circle Diameter: 104 mm
- Factory Number: Y-1LD98090

44 tooth:
- Compatibility: Deore FC-M590-L
- Bolt Circle Diameter: 104 mm
- Factory Number: Y-1LD98100

48 tooth:
- Compatibility: Deore FC-M590-L
- Bolt Circle Diameter: 104 mm
- Factory Number: Y-1LD98120
